RV HWH Hydraulic Spring Kit #R3847 (Pair) 13.375"

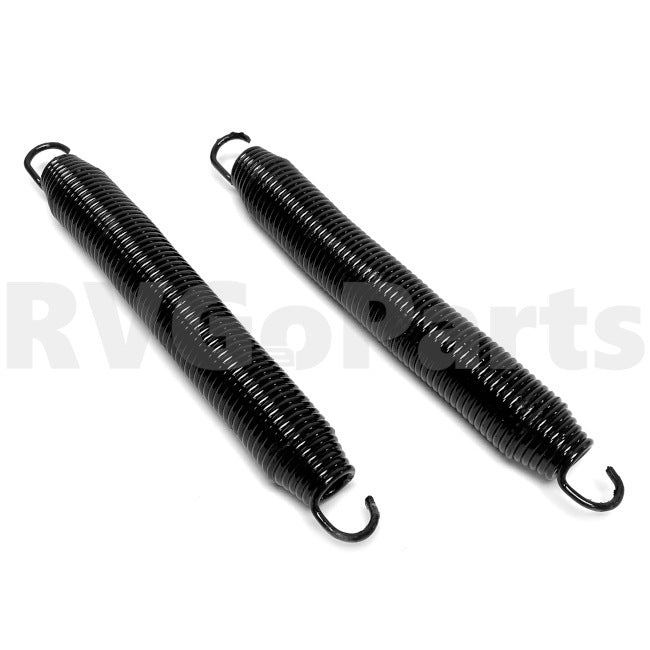

HWH hydraulic jack leveling spring kit. Each spring has 63 coils total. Kit come with 2 springs (no hardware included).

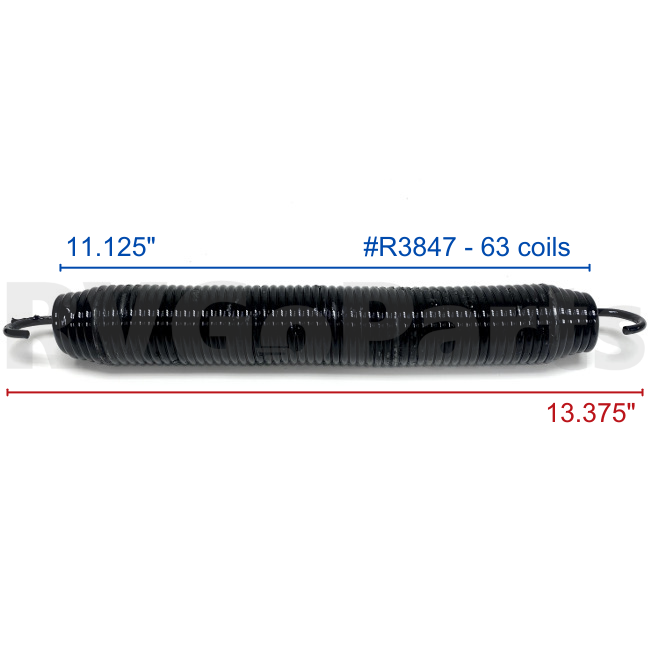

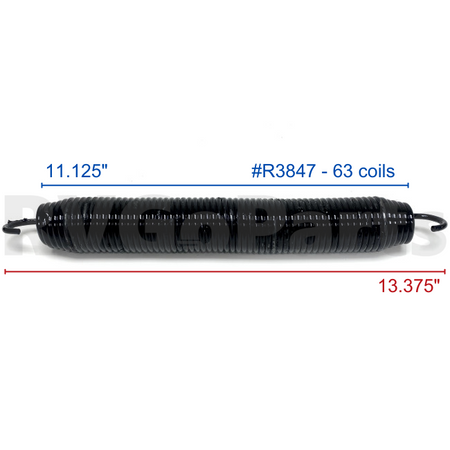

Dimensions: Springs measure about 13.375" (13-3/8") from end of hook to end of hook and 1.68" diameter; the coils alone measure 11.125".

OEM replacement part for class A Winnebago motorhomes. Also used on other makes and models of RV's. Winnebago & HWH part number R3847.

--
HWH spring kit #R3847 is used in the following assemblies. Look at the "AP" or "RAP" number listed on the tag of your HWH leveling jack to check if you have the correct spring (mostly 6K & 9K jacks):

AP0468, AP0498, AP0585, AP0947, AP1042 , AP1165, AP1168, AP1197, AP1198, AP1204, AP1613 , AP1615 , AP1901, AP1927, AP1930, AP1954, AP1955, AP2023, AP2024, AP2025, AP2026, AP2416, AP3898, AP8082, AP8112 , AP8164, AP8443 , AP8579 , AP8587, AP9098, AP9099, AP9306, AP9551, AP9567, AP9867, AP10107, AP10466, AP10717, AP10793, AP10882, AP10908, AP11147, AP11311, AP11312, AP11517, AP1152, AP11546, AP11703, AP11712, AP12076 , AP12503, AP12504 , AP13154 , AP14695, AP14696, AP14797, AP14916, AP14917, AP15196, AP15291 , AP15292 , AP15561 , AP15891, AP15892 , AP15900 , AP16076, AP16077, AP16100, AP16105 , AP16106 , AP16108, AP16109, AP16112, AP16113, AP16900, AP16901, AP17919, AP17920, AP17942, AP17943, AP18307 , AP18308 , AP18376 , AP18377 , AP18812 , AP18813, AP18815, AP18816, AP18817, AP19035, AP19036, AP19037, AP19038, AP20239, AP20313 , AP20316 , AP20770 , AP20771 , AP20955, AP21091, AP21092, AP21986, AP22419 , AP22420, AP22657 , AP22658, AP22808, AP22809, AP25180 , AP26327 , AP26328 , AP26651, AP26652, AP26658, AP26659 , AP27117, AP27118, AP27351, AP27352, AP28806, AP28808, AP28810, AP28812, AP28814, AP29355, AP29368, AP29382, AP29384, AP29386, AP29388 , AP29390, AP29392, AP29460, AP29468, AP29547, AP29620, AP29621, AP29622, AP29623, AP29971, AP29972, AP29973, AP29974, AP29975, AP29976, AP29977 , AP29978, AP29979, AP30386, AP30414, AP30717, AP30718, AP31012, AP31600, AP31606, AP31653, AP31656, AP31700, AP31701 , AP31940, AP31941, AP31982 , AP31983 , AP32034, AP32035, AP32094, AP32095 , AP32240, AP32241 , AP32536, AP32959, AP32960 , AP32961, AP32962 , AP32964, AP32965, AP33043, AP33118 , AP33119 , AP33120 , AP33288, AP33289, AP33954, AP34331, AP34474, AP34488, AP34489, AP34490, AP34583, AP34584, AP34592, AP34593, AP34595, AP34596, AP34641, AP35121, AP35122, AP35123, AP35124, AP35344, AP35345, AP35346, AP35347, AP35510, AP35511, AP35957, AP36172, AP36185, AP36952, AP37056, AP37057, AP37065, AP37066, AP37148, AP37149, AP37472, AP37609, AP39897, AP39927, AP39928, AP40858, AP41323, AP41689, AP41690, AP41998, AP41999, AP42908, AP42917, AP42918, AP42984, AP43007, AP43097, AP43099, AP43163, AP43164, AP43165, AP43180, AP43438, AP43453, AP43454, AP43770, AP43911, AP44097, AP44101, AP44102, AP44179, AP44180, AP44181, AP44256, AP44257, AP44287, AP44429, AP44432, AP44445, AP44447, AP44594, AP44595, AP44659, AP44661, AP44989, AP45002, AP45021, AP45075, AP45076, AP45077, AP45078, AP45081, AP45082, AP45083, AP45084, AP45179, AP45180, AP45426, AP45588, AP45656, AP45657, AP46303, AP46304, AP46747, AP46761, AP46762, AP46763, AP46799, AP47071, AP48086, AP48088, AP48138, AP48140, AP49586, AP50022, AP50023, AP50453, AP50454, AP50846, AP51266, AP51524, AP51592, AP51756, AP51775, AP51777, AP51844, AP51845, AP51847, AP51884, AP51886, AP51887, AP51890, AP51891, AP52063, AP52238, AP52239, AP52521, AP52522, AP52644, AP52645, AP52680, AP39898, AP39914, AP40503, AP40506, AP40509, AP40511, AP41844, AP41888, RAP9551, RAP92444, RAP92443, RAP9099, RAP8082, RAP3898, RAP1901, RAP1204
